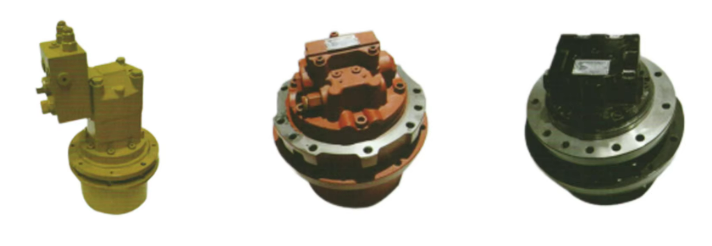

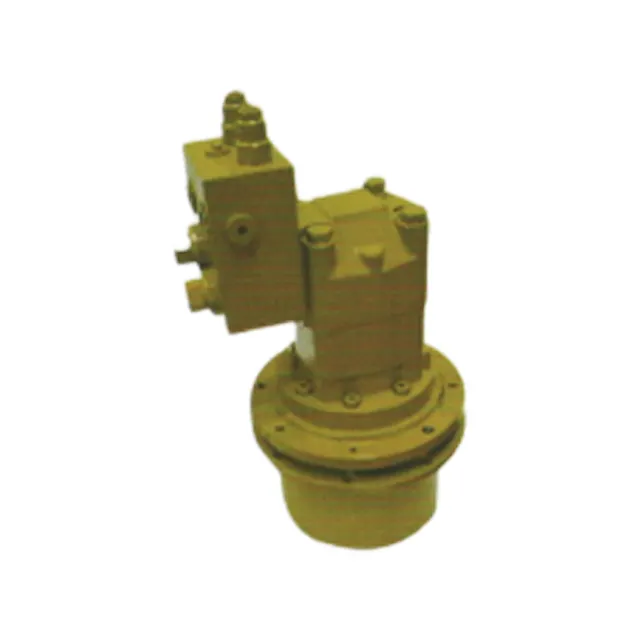

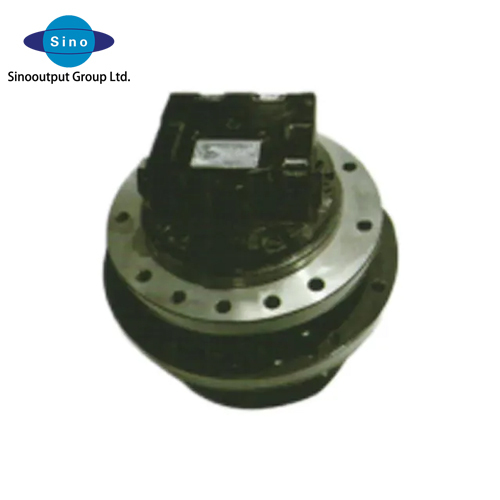

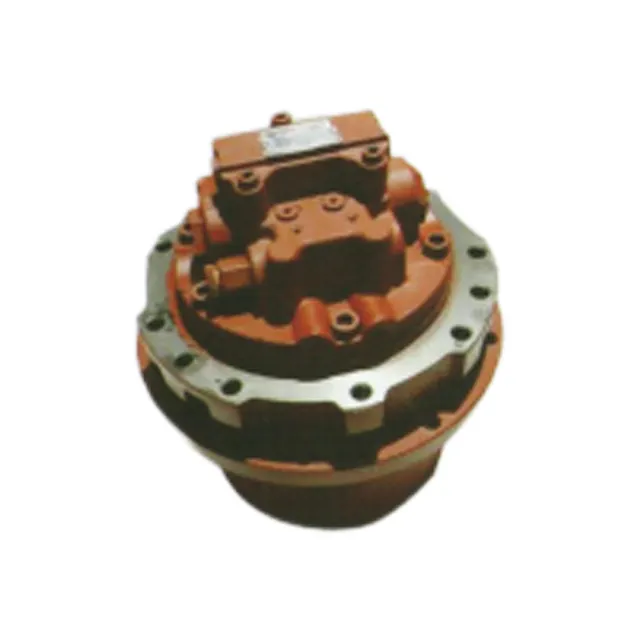

XZ series hydraulic travel reducer is composed of hydraulic motor, planetary gear reducer, brake, etc. It adopts mujiao connected steel frame, equipped with shuttle valve, balance valve and other safety control systems. Its structure is compact and occupies little space.

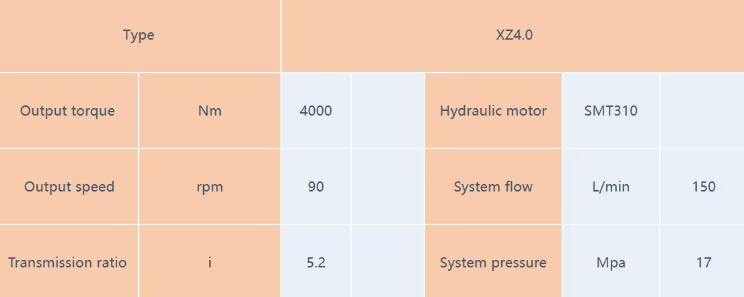

Structural features: XZ series hydraulic travel reducer is composed of hydraulic motor, planetary gear reducer, brake, etc. It adopts mujiao connected steel frame, equipped with shuttle valve, balance valve and other safety control systems. Its structure is compact and occupies little space. Specification:
Notes: - walking brake multi-disc brake, static braking torque 5000N. M, maximum return oil back pressure should be less than 5bar. - travel reducer adopts planetary gear reducer, smooth operation, compact and reasonable structure, internal lubrication with grease lubrication.- please use the bolt above 8.8 class (M12 above) to fix the travel reducer.
