Weichai X170ZC Marine Diesel Engine Series (258-601kW)

No.00216

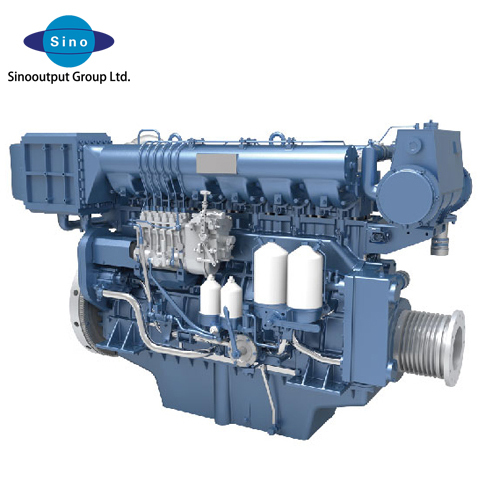

Weichai X170ZC marine diesel engine series (including 6170ZC series and 8170ZC series) is a 6-cylinder or 8-cylinder engine developed on the basis of the original 170Z series by further optimization of design and quality improvement. It can be widely used

Desciption

Weichai X170ZC Marine Diesel Engine Series (258-601kW)

Product parameters

Series	4-Stroke、water cooling、In-Line、Dry cylinder sleeve	Number of cylinders	6/8
Cylinder Diameter/Stroke	170×200mm	Displacement	27.24/36.32L
specific lub-oil consumption	197g/kW·h	Oil consumption	1.0g/ kW·h
Start Mode	Gas start/Electric start	Idling	500±50r/min
Firing Order	1-5-3-6-2-4 Left1-4-2-6-3-5Right	Smoke intensity	≤1.0Rb
Noise	≤116dB（A）	Emission standard	IMO TIER II
Crankshaft rotation direction (towards free end)	clockwise/anticlockwise

Product Spectrum

Model	Air intak	Rated Power（kW/Ps）	Speed（r/min）
X6170ZC408-1	Supercharged and cold	300/408	1000
X6170ZC450-1	Supercharged and cold	330/450	1000
X6170ZC450-2	Supercharged and cold	330/450	1200
X6170ZC480-2	Supercharged and cold	353/480	1200
X6170ZC520-2	Supercharged and cold	382/520	1200
X6170ZC540-2	Supercharged and cold	397/540	1200
X6170ZC580-3	Supercharged and cold	426/580	1350
X6170ZC600-3	Supercharged and cold	441/600	1350
X6170ZC620-4	Supercharged and cold	456/620	1500
8170ZC600-1	Supercharged and cold	441/600	1000
8170ZC720-2	Supercharged and cold	530/720	1200
8170ZC818-3	Supercharged and cold	601/818	1350
X6170ZC350-1	Supercharged and cold	250/350	1000
X6170ZC540-3	Supercharged and cold	397/540	1350

Product Features

Powerful: Optimized turbocharger, high-pressure fuel pump and fuel injector, with wide power coverage, larger torque reserve and high torque at low speed better for various working conditions.
Low fuel consumption: pulse conversion turbocharger makes combustion more adequate and fuel consumption lower, with wider low fuel consumption work area. Through the optimization of the oil seals, the oil consumption is reduced by 45%.
Fast start: The compression ratio is accurately calculated, and the high-power starter allows the engine to have stable idle speed and excellent low-temperature starting and acceleration performance.
High reliability: high-strength QT800 integral crankshaft, large-flow oil pump, oil is filtered first and then cooled to ensure reliable performance of diesel engine, less tube and split head design ensure the reliability and maintenance of the engine.
