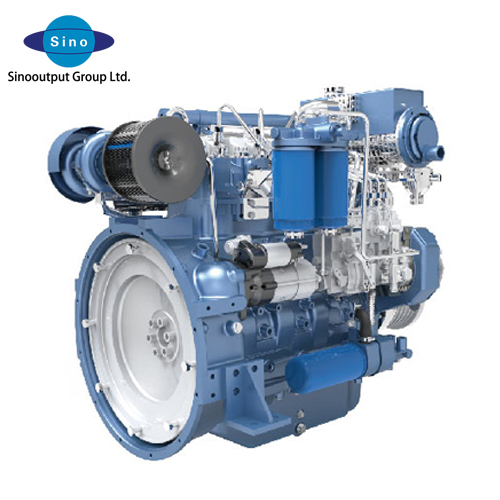

Weichai WP4 Marine Diesel Engine Series (60-95kW)

No.weichai marine engine 021

Weichai WP4 marine diesel engine series is the variation developed in accordance with laws and regulations based on marine engine working conditions and modification of engine combustion system, intake and exhaust system, cooling system, power output syst

Desciption

Weichai WP4 Marine Diesel Engine Series (60-95kW)

Product parameters

Series	4-Stroke、water cooling、In-Line、Dry cylinder sleeve	Number of cylinders	4
Cylinder Diameter/Stroke	105×130mm	Displacement	4.5L
specific lub-oil consumption	195g/kW·h	Crankshaft rotation direction (towards free end)	clockwise
Start Mode	Electric start	Idling	650±30r/min
Firing Order	1-3-4-2	Smoke intensity	≤1.5Rb
Noise	≤105dB（A）	Emission standard	IMO TIER II
Oil Consumption	0.8g/kW·h

Product Spectrum

Model	Air intake	Rated Power（kW/Ps）	Speed（r/min）
WP4C82-15	booster	60/82	1500
WP4C95-18	booster	70/95	1800
WP4C102-21	booster	75/102	2100
WP4C120-18	Supercharged and cold	88/120	1800
WP4C102-15	Supercharged and cold	75/102	1500
WP4C130-21	Supercharged and cold	95/130	2100

Product Features

Minimum fuel consumption low to 195g/kW•h
Reasonable fuel pump and turbocharger for smooth fuel consumption curve and excellent economy under common working conditions
Engine shut-down solenoids for fast, safe and reliable shut-down
Advanced German technology with high-quality parts and high product reliability
Advanced design concept with optimized structure for users' habits and is easy to install and maintain
