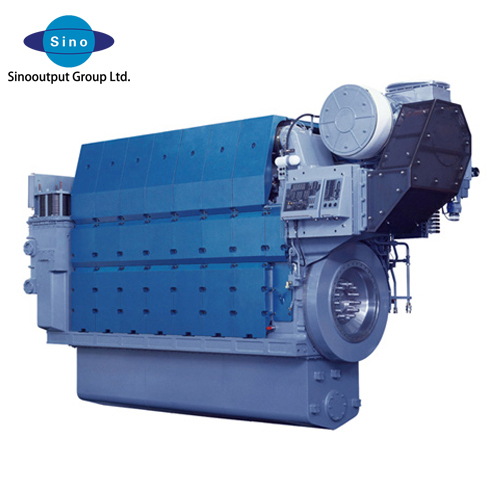

Weichai MANL27/38 series marine diesel engine (2420-3285KW)

Item No.: 00522
Four-stroke, water-cooled, in-line, supercharged and intercooled
Number of cylinders 5/6/7/8/9
Displacement 109/130.8/152.6/174.4/196.2L
Minimum fuel consumption 181g/kW·h
Description Review
Description

Product description

WEICHAI MAN L27/38 series marine diesel engines are introduced by Weichai and the world marine diesel engine brand German MAN through the signing of a license production agreement. The body of this series of products adopts an overall rigid design with high safety; MAN's advanced turbocharger and two-stage intercooler; SaCoSone safety control system produced by MAN, with high reliability; combustible MGO, MDO, HFO, strong adaptability. Obtained the engine certification certificates of the world's nine major classification societies LR, GL, DNVGL, BV, ABS, CCS, NK, RS, RINA, KR, and met the requirements of the International Convention for the Safety of Life at Sea (SOLAS).


Product parameters



Type Four-stroke, water-cooled, in-line, supercharged and intercooled Number of cylinders 5/6/7/8/9
Bore/Stroke 270×380mm Displacement 109/130.8/152.6/174.4/196.2L
Minimum fuel consumption 181g/kW·h oil consumption rate 0.8g/kW·h
Start method gas start idle speed 500±50r/min
Crankshaft rotation direction
(facing free end)
Clockwise Counterclockwise Emission Standards IMO TIER II, China I, II



Product spectrum



Marine main engine
model Number of cylinders Rated power
(kW/Ps)
Calibration speed (r/min) Dimensions (mm) Net weight (t)
WEICHAI MAN 6L27/38 6 2040/2774
(HFO/MDO)
800 5070*2035*3555 31.0
WEICHAI MAN 7L27/38 7 2380/3808
(HFO/MDO)
800 5515*2035*3687 34.0
WEICHAI MAN 8L27/38 8 2720/3699
(HFO/MDO)
800 5960*2035*3687 37.0
WEICHAI MAN 9L27/38 9 3060/4162
(HFO/MDO)
800 6405*2035*3687 40.5
WEICHAI MAN 6L27/38 6 2190/2978
(MGO)
800 5070*2035*3555 31.0
WEICHAI MAN 7L27/38 7 2555/3475
(MGO)
800 5515*2035*3687 34.0
WEICHAI MAN 8L27/38 8 2920/3971
(MGO)
800 5960*2035*3687 37.0
WEICHAI MAN 9L27/38 9 3285/4468
(MGO)
800 6405*2035*3687 40.5



generator set
model Number of cylinders Frequency (Hz) Speed ​​(r/min) Unit power (kW) Dimensions (mm) Net weight (t)
WEICHAI MAN 5L27/38 5 50/60 750/720 1536/1440 6832*2300*3712 40.0
WEICHAI MAN 6L27/38 6 50/60 750/720 1900 7557*2300*3712 44.5
WEICHAI MAN 7L27/38 7 50/60 750/720 2218 8002*2300*3899 50.4
WEICHAI MAN 8L27/38 8 50/60 750/720 2534 8667*2300*3899 58.2
WEICHAI MAN 9L27/38 9 50/60 750/720 2851 9112*2300*3899 64.7


Features

  • Power: Wide power coverage, marine main engine 2040kW-3285kW, generator set 1500-3150kW.
  • Economy: The lowest fuel consumption can reach 181g/kW•h, and the oil consumption rate is less than 0.8g/kW•h.
  • Reliability: The unique structural design of the engine and the advanced SaCoSone safety control system produced by MAN guarantee trouble-free operation of the engine and a long overhaul period.
  • Applicability: Good fuel applicability, it can use light diesel oil MGO, marine diesel MDO, heavy oil (HFO) with a viscosity of up to 700cSt/50℃, and can provide a better matching scheme of booster system according to the operating conditions of the engine.
  • Environmental protection: meet IMO Tier II, China I, China II emission requirements.
