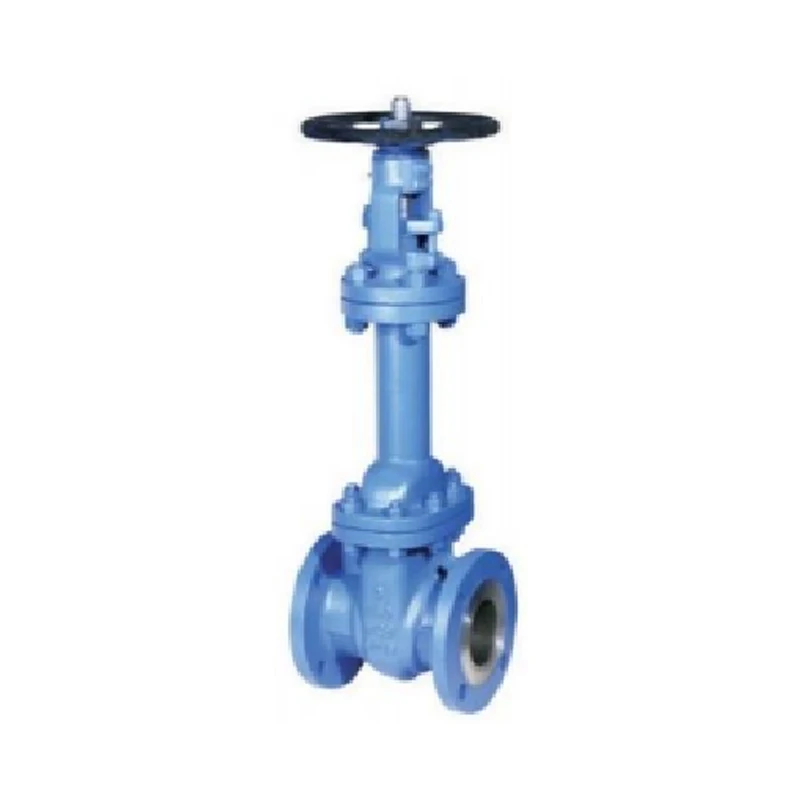

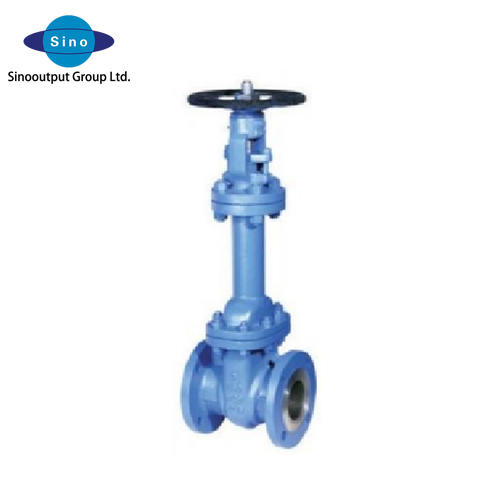

US Standard Bellows Gate Valve High Temperature & Double sealing Leak-Proof Design for Hot Oil/Steam/Cold-Hot Water Systems
Our US Standard Bellows Gate Valves are designed for high-temperature applications with a double-sealing, leak-proof structure, ensuring superior performance in hot oil systems, steam systems, and cold-hot water systems. These valves provide exceptional durability, tight sealing, and long-lasting performance, reducing the risk of leaks and maintenance downtime. Engineered to meet US industry standards, they are ideal for petroleum, chemical, power generation, and industrial process applications requiring precise flow control. Whether used in high-pressure steam lines or thermal oil systems, our bellows gate valves ensure safe and efficient operation. Contact us today to learn more about our advanced valve solutions!
Hot oil system, steam system, hot and cold water system, etc.
Main advantages of the product

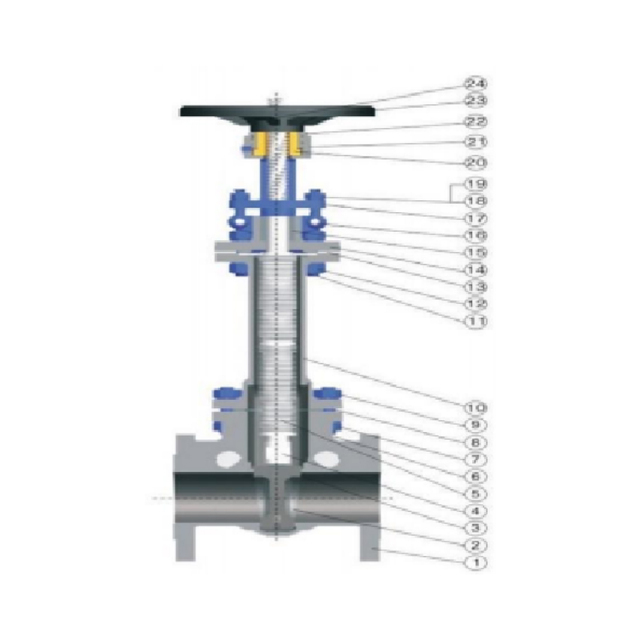

1. The key component of the American standard bellows gate valve is the metal bellows, which is automatically welded to the valve stem assembly at the lower end and the connecting plate at the upper end , forming a metal barrier between the fluid medium and the atmosphere to ensure zero leakage of the valve stem. 2. The double sealing design (bellows + packing) will prevent leakage if the bellows fails, and it meets international sealing standards. 3. The valve cover is equipped with a grease joint , which can directly lubricate the valve stem , nut and sleeve, unlike the traditional method of only adding lubricating oil to the thread. 4. The ergonomically designed handwheel has a longer service life, is easy and convenient to operate, and is safer and more reliable.
Specification

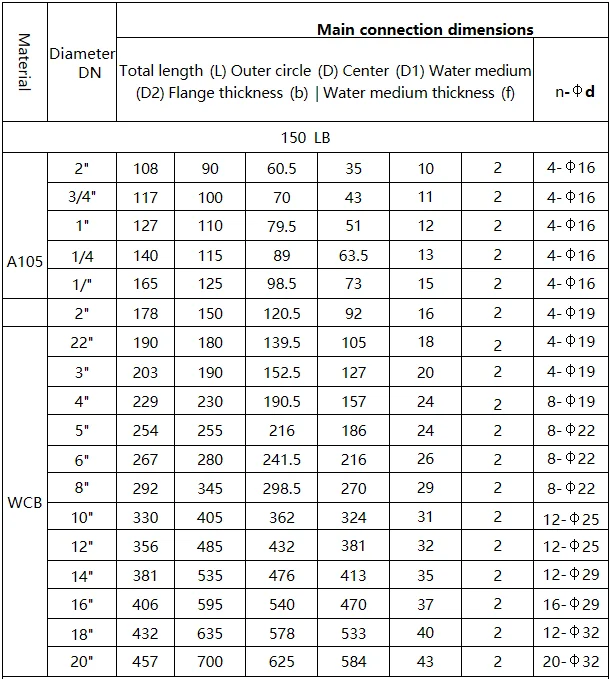

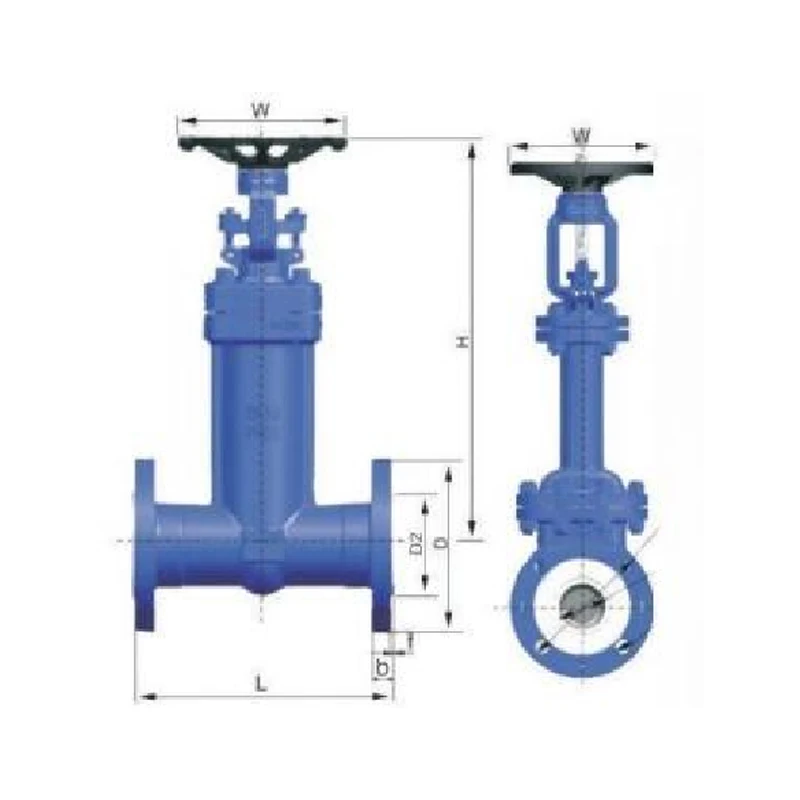

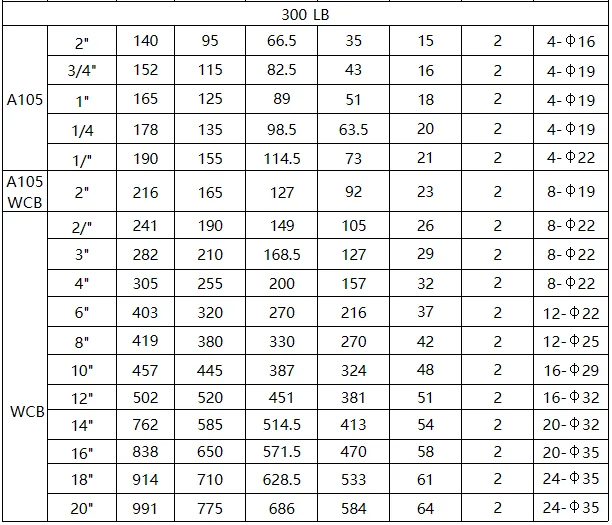

Technical Specifications

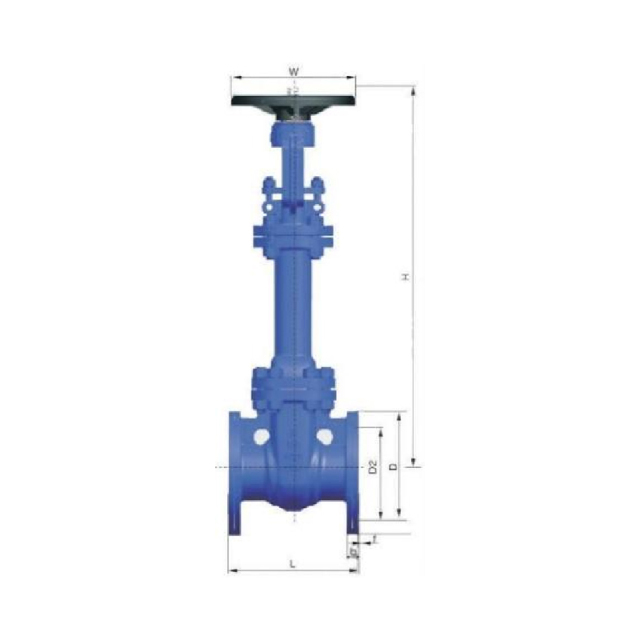

Design standard: ASME B16.34 Structural length: ASME B16.10 Connection flange: ASME B16.5 Test and inspection: API 598

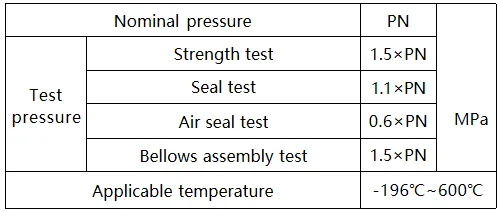

Performance Specifications

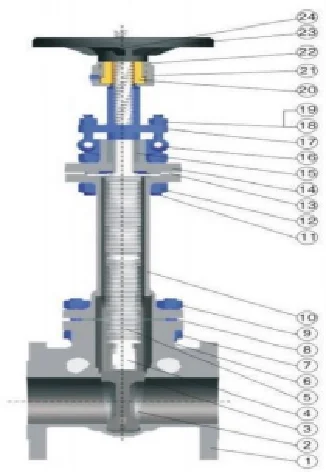

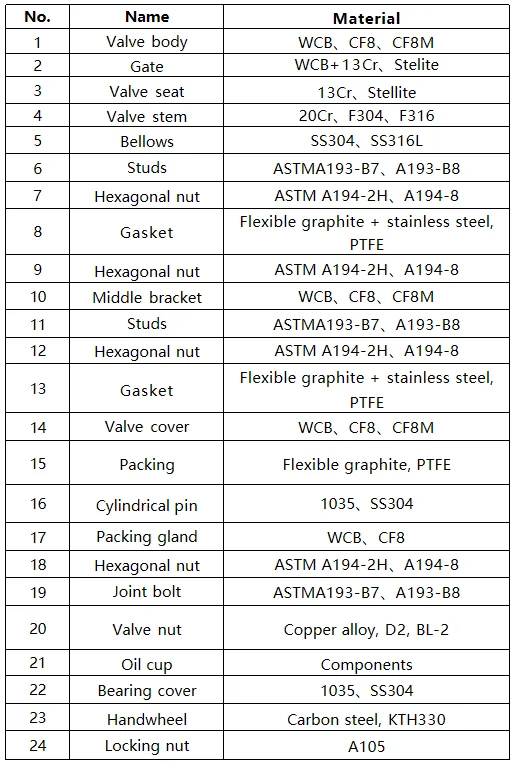

Main parts material
