  • Steyr D12 series marine engine

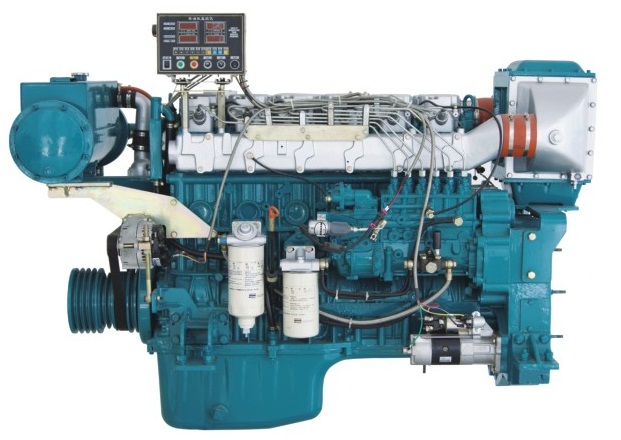

Steyr D12 series marine engine

No.Steyr D12 series marine engine
Each cylinder has a cylinder head, four valve inlet and exhaust system, reliable work, convenient disassembly. According to different occasions and requirements of the use ,can choose electric pump or common rail pump.
  • Steyr D12 series marine engine
Desciption

Steyr D12 series marine engine



Each cylinder has a cylinder head, four valve inlet and exhaust system, reliable work, convenient disassembly.

According to different occasions and requirements of the use ,can choose electric pump or common rail pump.

The built-in type oil cooler, safe and reliable.

Using the rear end of the gear system (flywheel end) to reduce the noise and improve the reliability.

The water outlet pipe and the engine block are integral body, using double type thermostat.

Frame main bearing structure, the whole body rigidity is high, it is advantageous to improve the reliability and service life of the whole machine.

Double circulating cooling system, in which the cooler is arranged on the top of the flywheel housing, the structure is more compact.

Crankshaft belt pulley, water pump and generator by the multi wedge belt drive, the structure is simple.

The output end of the diesel engine is the same as the WD615, which has better generality.



Model

D1242C



D1242DC

Type

Vertical, in-line, water-cooled, four-stroke, direct injection

Air inlet

Turbocharged and intercooled

NO. of cylinder

6

Bore×stroke

(mm×mm)

126×155

NO. of valve/

cylinder

4

Crankshaft rotation direction(look from the free end)

clockwise

Ignition sequence

1-5-3-6-2-4

Displacement (L)

11.596L

Rated fuel consumption rate (g/kW▪ h)

215

Maximum combustion pressure (MPa)

16

14.5

Compression ratio

17:1

Oil fuel consumption ratio(%)

0.4

Starting mode

Electric starting

Charge ratio

1.85

Idle speed(r/min)

600±50

700±20

Crankshaft type

Integral type

Net weight(kg)

1200

Dimensions

L×W×H (mm)

1751×947×1277
