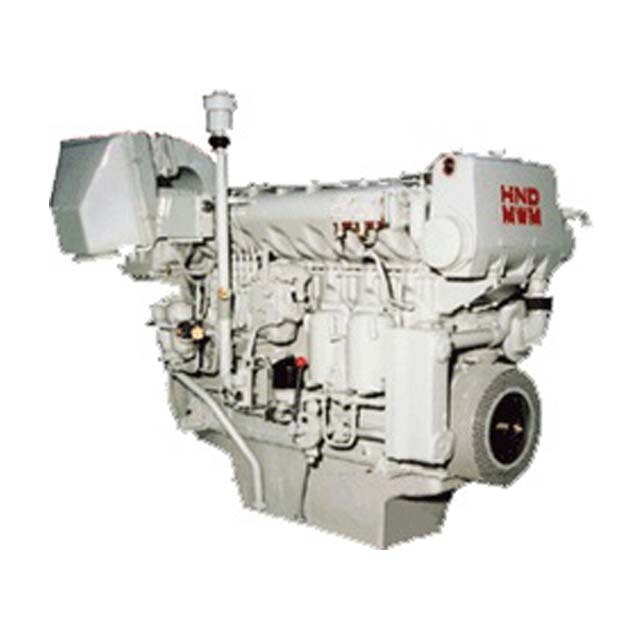

TBD604BL6 Series Marine Diesel Engine(372-637W)

No.00764
Power:372-637kW four-stroke, water-cooling, in-line Number of cylinders: 6
  • TBD604BL6 Series Marine Diesel Engine(372-637W)
  • TBD604BL6 Series Marine Diesel Engine(372-637W)
  • TBD604BL6 Series Marine Diesel Engine(372-637W)
Desciption


Main features: good economy, improved combustion at low load due to use of “HALLO” technology (smooth fuel consumption curve, quite low consumption even at part load), good startability and speed-up performance, high reliability, low noise and long service life (first overhaul interval up to 24000h), convenient to service.Have no special requirement on fuel and can meet the requirement of IMO Nox emission.



Basic parameters

Main Technical Data
Bore/stroke
170/195 mm
Cylinder Arrangement
 in-line
Number of Cylinder
6
Unit Cylinder Volume
4.43dm³
Compression Ratio
14.2:1
Min Steady Speed
600r/min
Ignition Speed
150r/min
Direction
Anti-clockwise rotation (from flywheel end )
Lub. Oil Consumption
≤1.3g/kW・ h
Size
2242x1349x1953 mm
Dry Weight
2550kg
Rated Power
372-637kw
Speed
1200-1800 r/min
