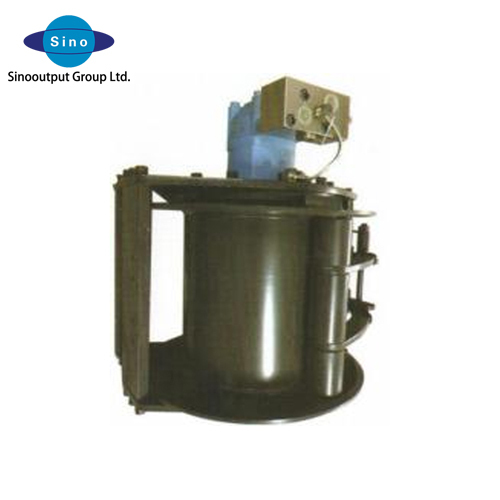

SINO-HW-3.0N built-in hydraulic winch compact structure small space for lifting traction equipment ships docks and automobiles
This series winch is composed of various valve blocks, hydraulic motors, multi-plate hydraulic brakes, planetary reducer, drum,frame and other components with one- way or two-way balancing valves and high-pressure shuttle valves for controlling hydraulic brakes.
This series winch is composed of various valve blocks, hydraulic motors, multi-plate hydraulic brakes, planetary reducer, drum,frame and other components with one- way or two-way balancing valves and high-pressure shuttle valves for controlling hydraulic brakes.
Users only need to be equipped with a pump station and reversing valve, because the winch with its own valve set, not only simplified the hydraulic system, and improve the reliability of the transmission device. SINO hydraulic winch in lifting and lowering work smooth operation, low noise, and start and work efficiency, low energy consumption, compact size, beautiful appearance, good economy and other characteristics.
It can be widely used in railway locomotive and truck crane, ship, oil field drilling and mining, coal mine, port, small engineering machinery and other lifting and traction equipment.
Specification
This series hydraulic winch consists of cyclo idal motor, planetary gear reducer and brake. Threaded connection· steel frame, equipped with shuttle valve, balance valve and other safety control systems, with compact structure and small space, it is suitable for various lifting and traction equipment such as ships, docks and automobiles.

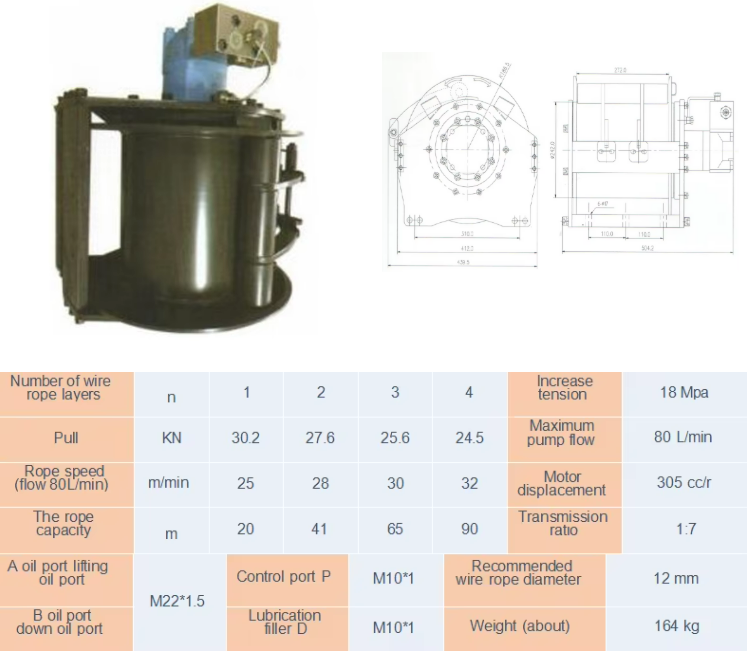

SINO-HW-3.0N Built-in Hydraulic Winch Notes: - the reel shall be rotated clockwise for lifting (as required by the user), and at least 5-6 loops of wire rope shall be kept on the reel for safety. -Winch brake multi-disc brake, static braking torque 580N. M, maximum return oil back pressure should be less than 5bar. -The winch adopts planetary gear reducer, which is stable in operation, compact in structure and lubricated by grease. - use bolts above 8.8 (M12) to secure the winch. (warning: current equipment cannot be used to carry people)

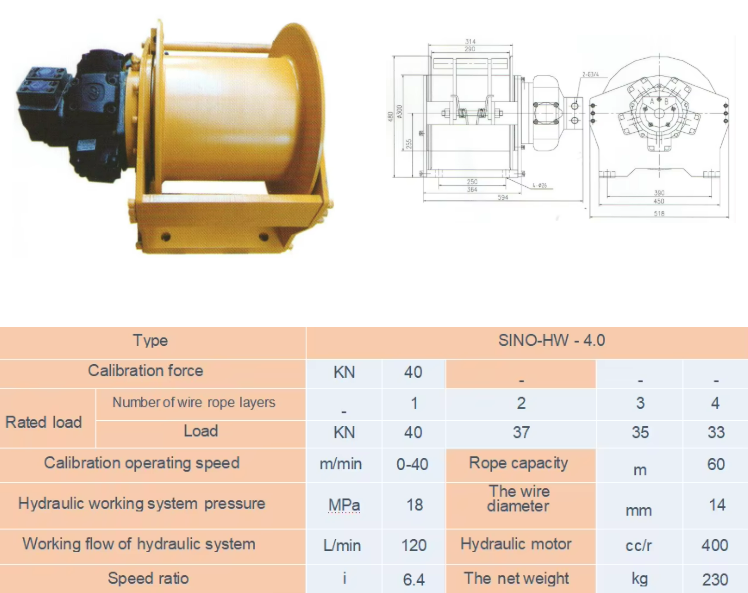

SINO-HW-4.0 Hydraulic Winch

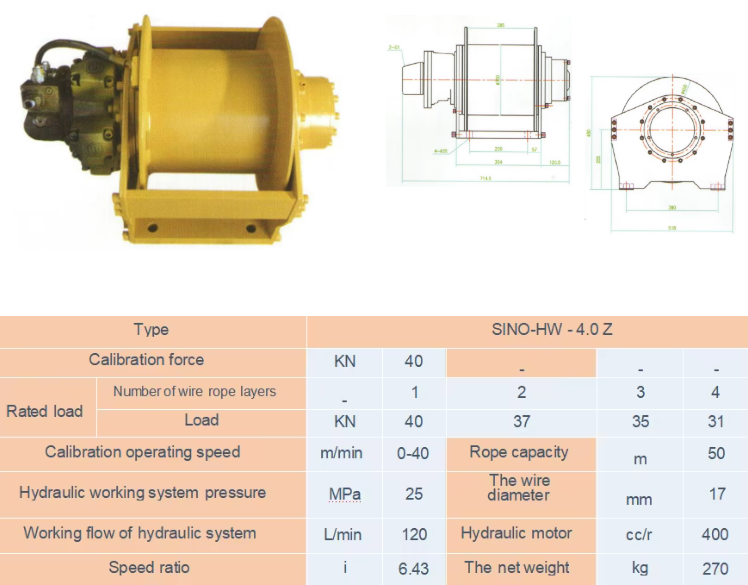

SINO-HW-4.0Z Hydraulic Clutch Hydraulic Winch
