Main parameters of diesel engine:
Diesel engine power: 2574~4500kW (3500~6120 HP)
Diesel engine form: four-stroke, direct injection, supercharged and intercooled
Number of cylinders: 8 in-line
Bore x Stroke: 340 x 450mm
Speed: 520~650 rpm
Compression ratio: 13.5:1
Average effective pressure: 20.1~24.3bar
Fuel consumption rate: 184+3%g/kW h
Oil consumption rate: ≤0.6 g/kW·h
NOx emission standard: IMO Tier II
Cylinder height: 2400 mm above the crankshaft centerline

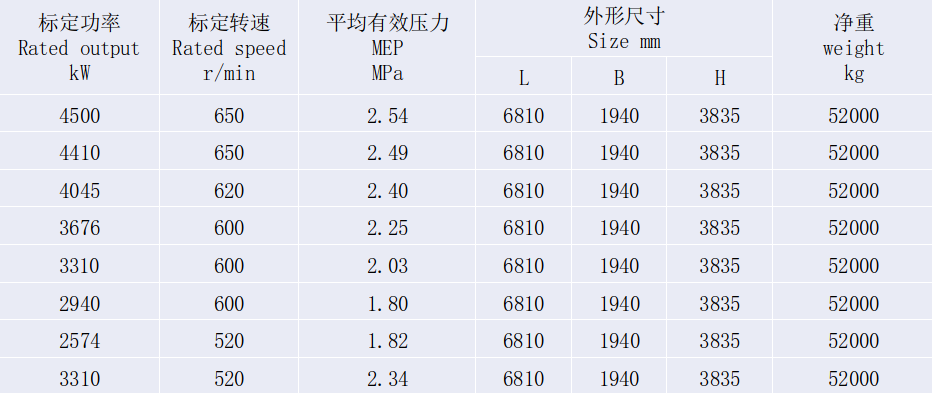

Basic parameters
Outline drawing
