  • marine transmission gearbox MV100A(7 Down Angle) of ratio 1.2:1 to 2.8:1t, passenger ship and cargo boat

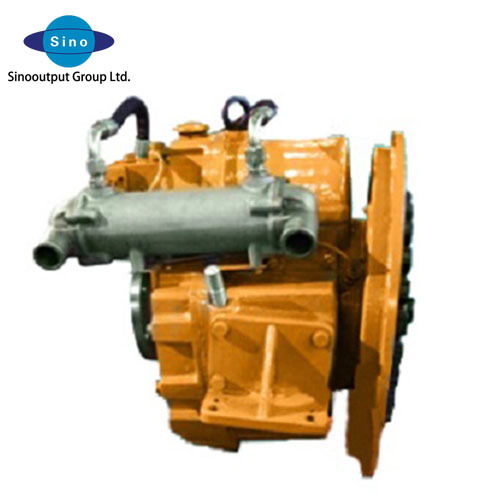

marine transmission gearbox MV100A(7 Down Angle) of ratio 1.2:1 to 2.8:1t, passenger ship and cargo boat

No.marine gearbox MV100A
Place of Origin: Shanghai, China (Mainland) Brand Name:Advance Part: gearbox Model Number: MV100A(7 Down Angle) Gearing Arrangement: Helical Output Torque: 880Nm, 880Nm Rated Power: 0.18-160kw Input Speed: 2000rpm Output Speed: 1800r/min Rated th
  • marine transmission gearbox MV100A(7 Down Angle) of ratio 1.2:1 to 2.8:1t, passenger ship and cargo boat
Desciption

General introduction:


marine tansmission gearbox MV100A(7 Down Angle) of ratio 1.2:1 to 2.8:1



HC-series marine gearbox self-developed by the company is of power ranging 10kW~3000kW, ratio ranging 1.5~20:1, complete in specifications, high market share, widely used in heavy loaded ships such as transport, fishing and engineering boats. Product design and manufacturing capability are in leading nationally and advanced internationally level.

                                                                                  Parameters:


Input speed 1000-3000r/min
Reduction ratio 1.23,1.28,1.62,2.07 Trans. capacity 0.10kw/r/min
2.56 0.09kw/r/min
2.87 0.08kw/r/min
Control way Push-and-pull flexible shaft
Rated thrust 20KN
Center distance 0mm
L×W×H 485×508×580mm
Net weight 220kg
Flywheel 6135Ca  SAE14 11.5
Bell housing 6135Ca  SAE1 2 3
