General introduction:

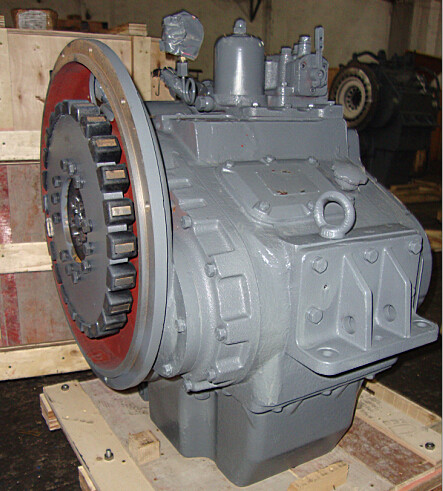

HC-series marine gearbox self-developed by the company is of power ranging 10kW~3000kW, ratio ranging 1.5~20:1, complete in specifications, high market share, widely used in heavy loaded ships such as transport, fishing and engineering boats. Product design and manufacturing capability are in leading nationally and advanced internationally level.
Parameters:
| Input speed | 1000-1800r/min | ||
| Reduction ratio | 1.50,1.77,2.04,2.50,2.86,3.00,3.42 | Trans. capacity | 0.331kw/r/min |
| 4.06 | 0.279kw/r/min | ||
| 4.61,4.94 | 0.190kw/r/min | ||
| Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
| Rated thrust | 82KN | ||
| Center distance | 264mm | ||
| L×W×H | 641×950×890mm | ||
| Net weight | 820kg | ||
| Flywheel | SAE18,16,14 | ||
| Bell housing | SAE0,1 | ||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
