Overview

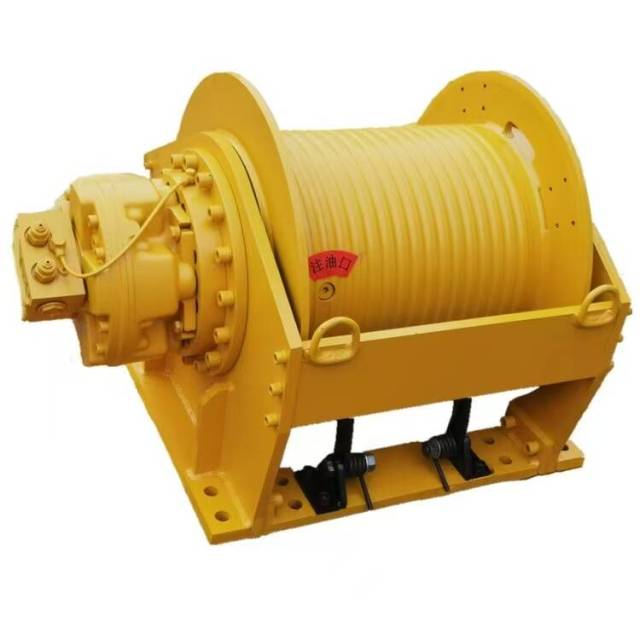

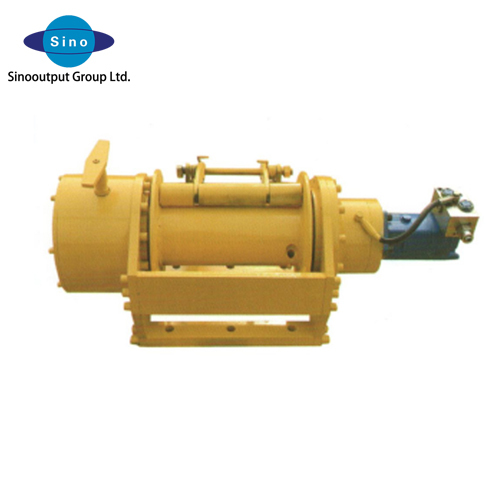

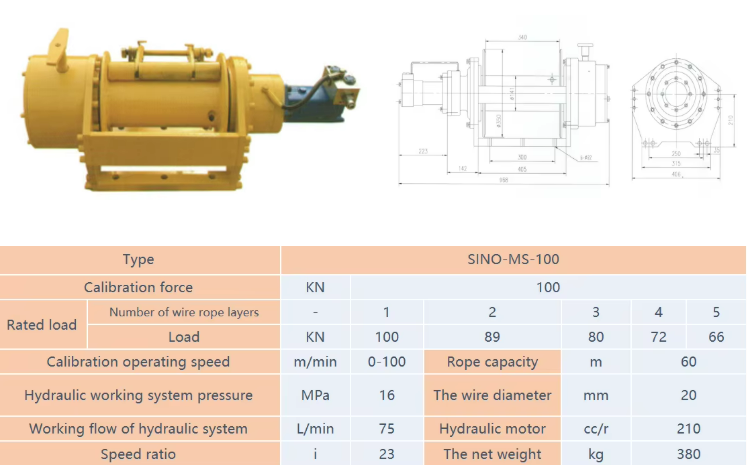

SINO-MS-100 hydraulic planetary drive capstan can be used for automobile self-rescue, rescue and towing objects. It can also be used for road obstacle removal and rescue vehicles to tow defective vehicles, engineering installation, oil field drilling, etc. This product can work in the field for a long time with the host machine. Its features are compact structure, small volume, light weight, large tension, easy installation and maintenance.
Working principle and composition
SINO-MS-100 series hydraulic winch is obvious characteristics of less tooth differenced transmission adopts advanced planets, strong bearing capacity, transmission efficiency, smooth transmission and easy to operate. It is composed of planetary gear reducer, low speed high torque hydraulic motor, hydraulic brake, mechanical clutch, drum, such as components, obtained by hydraulic motor through the hydraulic system of hydraulic energy into mechanical energy, planetary gear reducer reducer line twist, produce very big torque on the drum, by means of the wire rope winding drum reach the goal of towing heavy objects.
