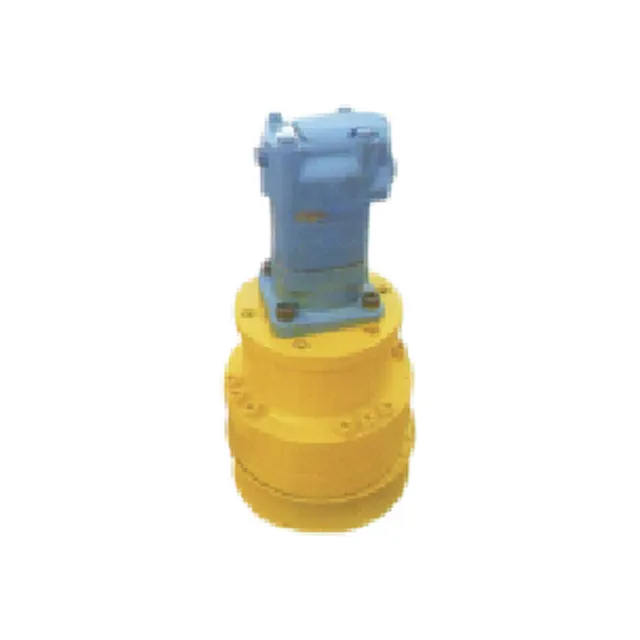

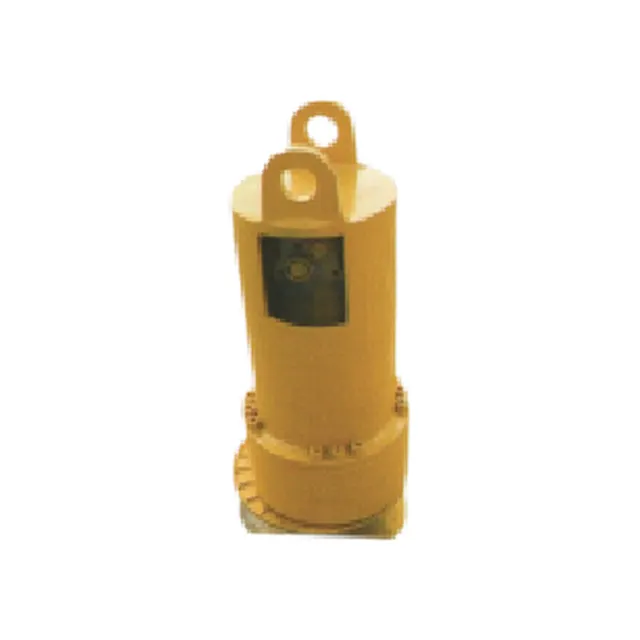

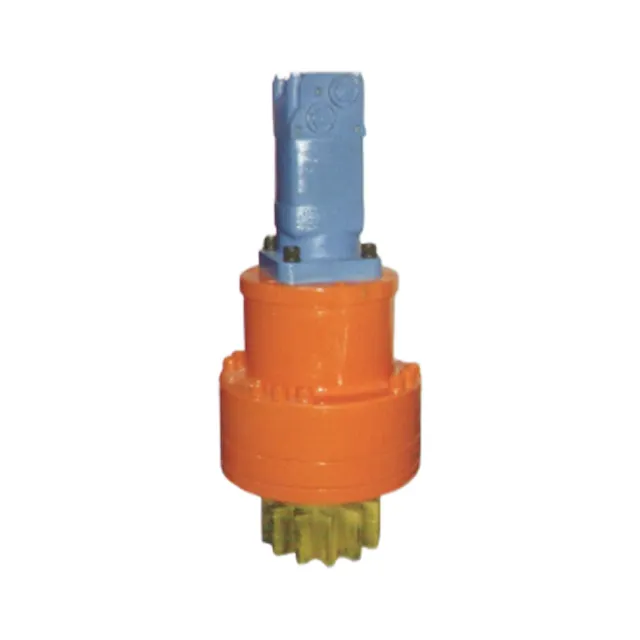

Hydraulic rotary reducer output torque 4000Nm compact structure small occupancy space for engineering ships automobiles etc.
HZ series hydraulic rotary reducer is composed of hydraulic motor, planetary gear reduction, normally closed hydraulic braking, etc., adopt advanced technology level and processing means, configure shuttle valve, balance valve and other safety control system, so as to effectively ensure the strong bearing capacity and reliable operation of the product; Its compact structure, small occupancy space, widely used in engineering, ships, automobiles, agriculture and new energy and other rotary transmission and drive devices.
Structural characteristics : HZ series hydraulic rotary reducer is composed of hydraulic motor, planetary gear reduction, normally closed hydraulic braking, etc., adopt advanced technology level and processing means, configure shuttle valve, balance valve and other safety control system, so as to effectively ensure the strong bearing capacity and reliable operation of the product; Its compact structure, small occupancy space, widely used in engineering, ships, automobiles, agriculture and new energy and other rotary transmission and drive devices.

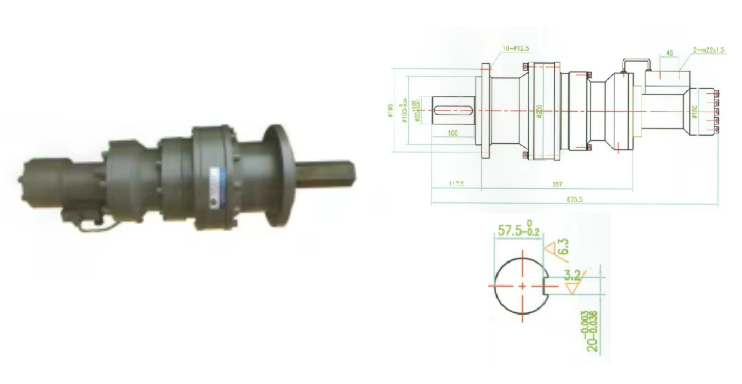

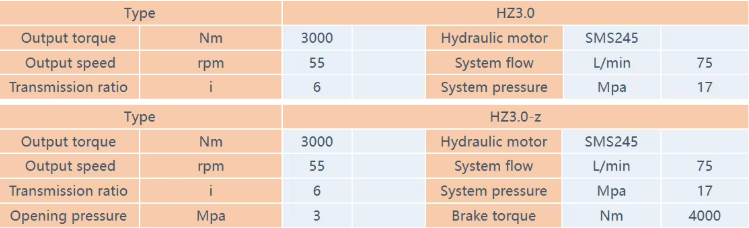

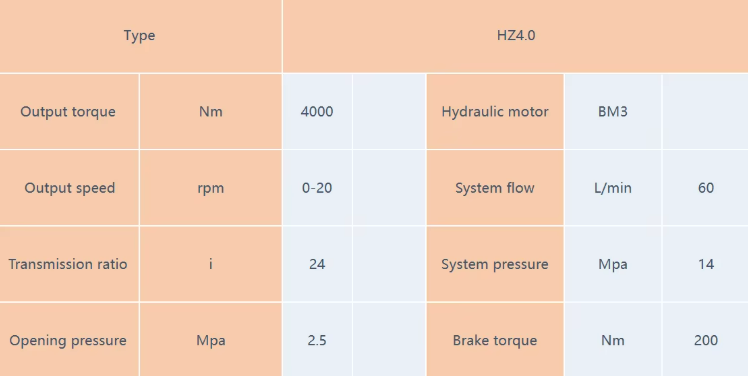

Specification:
Notes: A rotary brake multi-disc brake, static braking torque 40don.m, the maximum return oil back pressure should be less than 5bar.Rotary reducer adopts planetary gear reducer, running smoothly, compact and reasonable, internal lubrication with grease moist- please use bolts above 8.8 (above M12) to fix the rotary reducer
