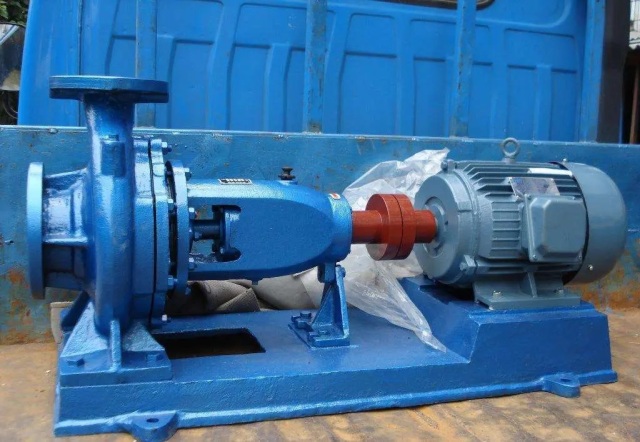

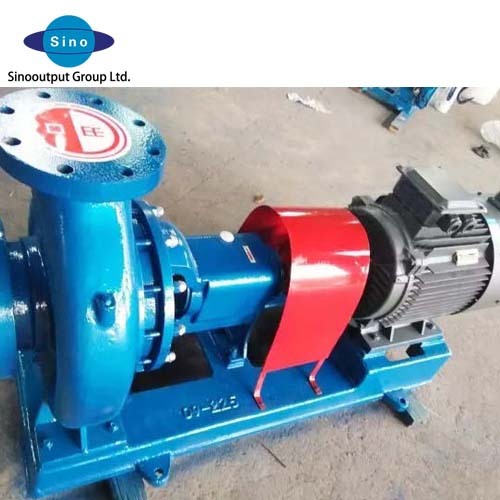

The horizontal single-stage single-suction clean water centrifugal pump is an energy-saving pump jointly designed by the whole country. It is an updated type of other single-stage clean water centrifugal pumps. The advantages are as follows: the whole series of hydraulic performance has a reasonable layout, a wide range of user selection, and convenient maintenance; the efficiency and suction lift reach the international average advanced level. This type of pump is suitable for industrial and urban water supply and drainage, and can also be used for agricultural irrigation and transportation of clean water or other liquids with physical and chemical properties similar to clean water. The temperature is not higher than 150 ℃.
Structural features
1 pump body, 2 pump cover, 3 impeller, 4 shaft, 5 seal ring, 6 impeller nut, 7 stop washer, 8 shaft sleeve, 9 packing gland, 10 packing ring, 11 packing, 12 suspension bearing parts
Specification
| Flow (m³/h) |
240, 400 |
Head (m) |
125, 55 |
| Use pressure(MPa) |
1.6 |
Pump weight (kg) |
40-2100 |
Use temperature
|
150°C |
Maximum speed (r/m) |
3500 |
