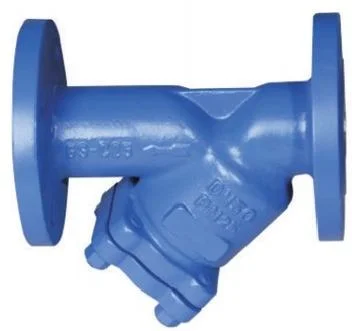

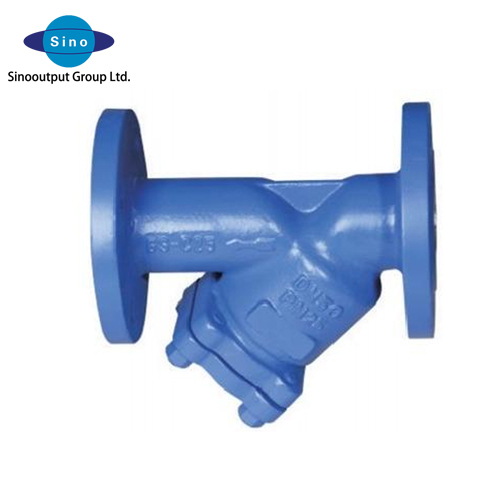

High Flow Y-Pattern filter for Water/Gas/Oil Pipelines DIN Standard Flanged Ends Cast Iron/Stainless Steel Options CE Certified
Our Y-Pattern Filters are engineered for efficient filtration in a variety of industrial applications, including petroleum, chemicals, pharmaceuticals, fertilizers, and electricity generation. These filters are designed to protect systems from debris and impurities, ensuring the smooth operation of pipelines and machinery. Made with durable materials and advanced filtering technology, our Y-pattern filters provide long-lasting performance and high filtration efficiency, reducing the risk of system failure and maintenance costs. Ideal for both liquid and gas applications, these filters maintain the quality of fluids and protect vital equipment in demanding industries. Contact us today to learn more about our Y-Pattern filter solutions!
Technical Specifications Design standard: DIN 3356 Structural length: DIN 3202 Connection flange: DIN 2543-2546 Test and inspection: DIN 3230
Application
Hot oil system, steam system, hot and cold water system, natural gas supply system, etc.
Main advantages of the product
1. German standard Y-type filter is used to eliminate impurities in the medium and can effectively protect the normal use of valves and equipment; 2. Double-layer stainless steel filter, more thorough impurity filtration and better corrosion resistance; 3. When cleaning is required, just take out the detachable filter, process it and reinstall it, which is extremely convenient for maintenance

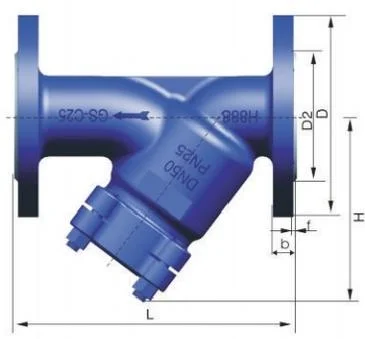

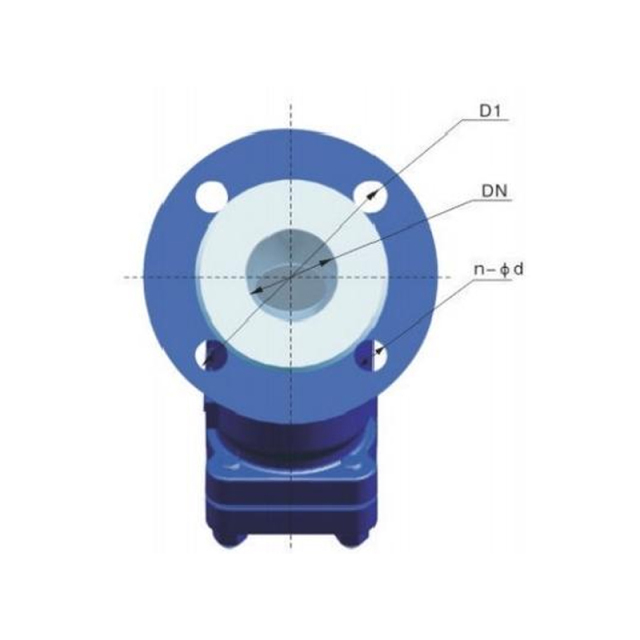

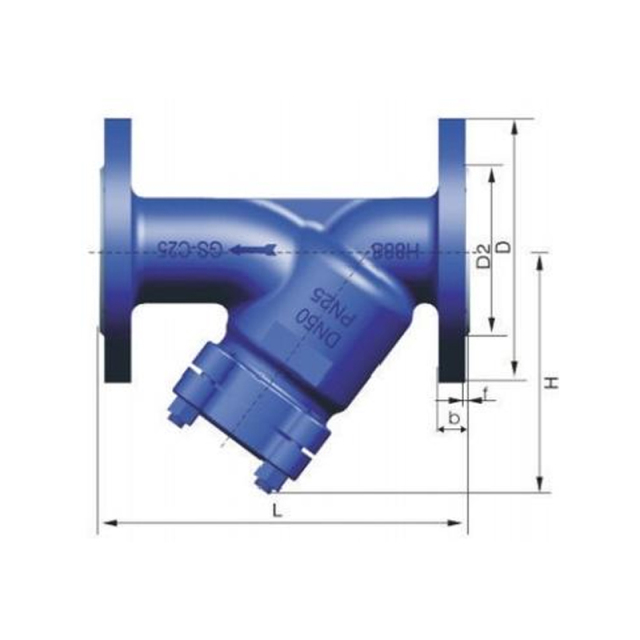

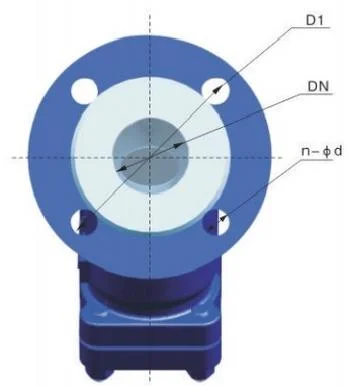

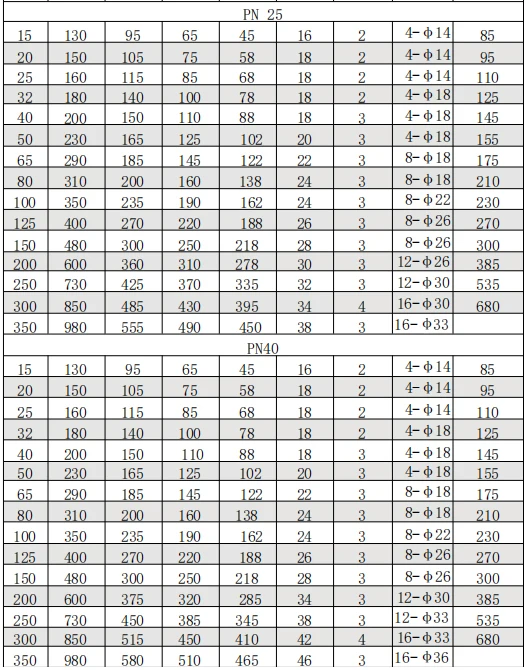

Specification

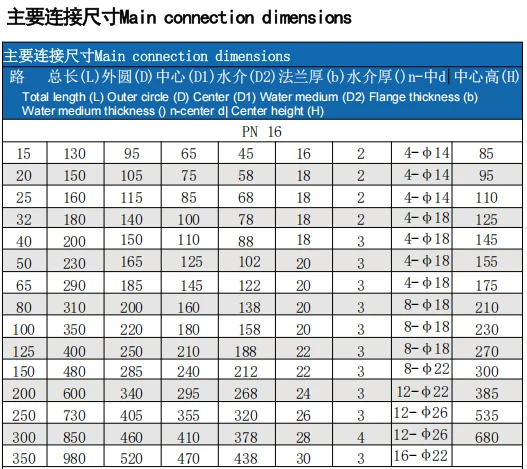

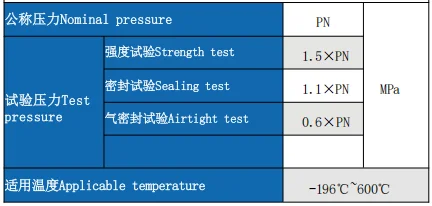

Performance Specifications

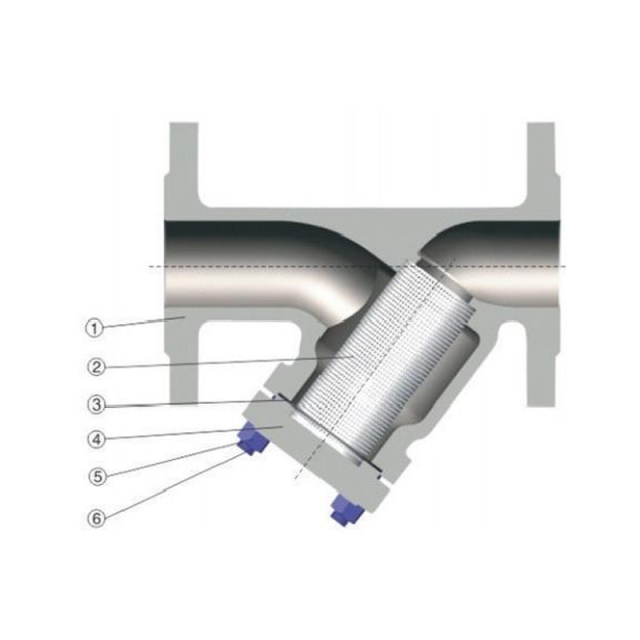

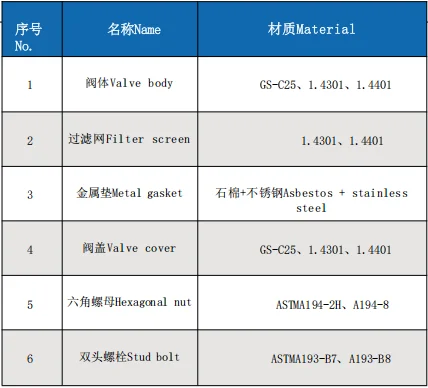

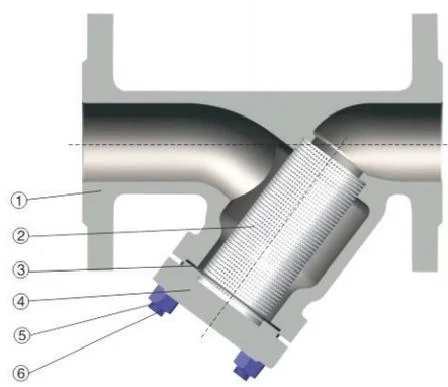

Main parts material

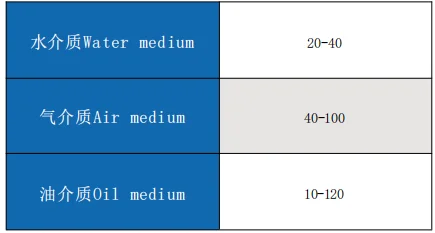

Filter mesh table
