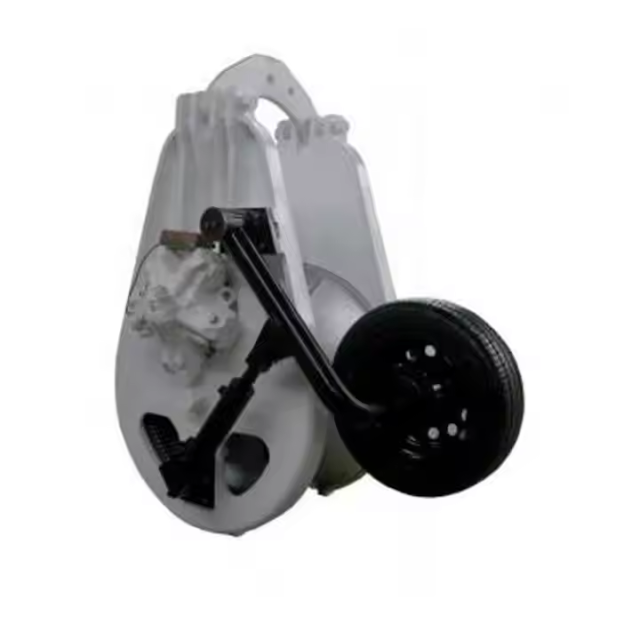

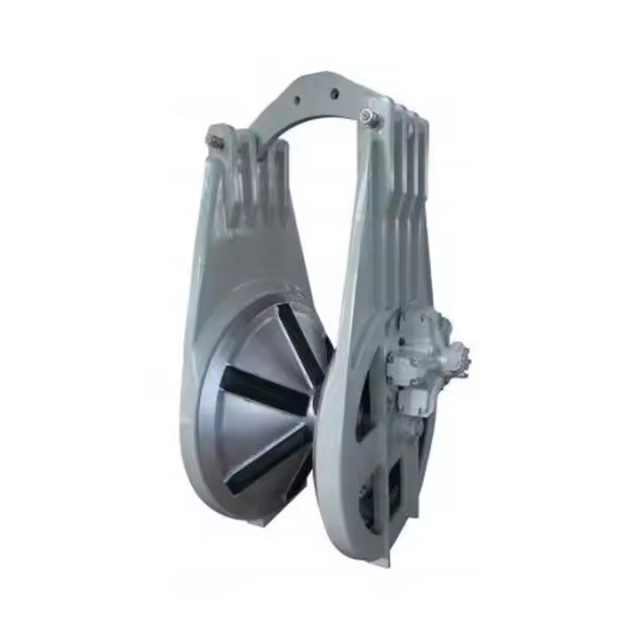

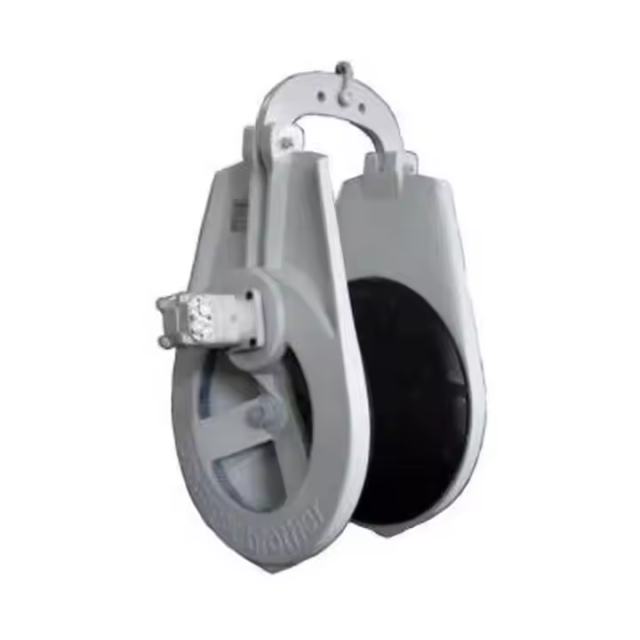

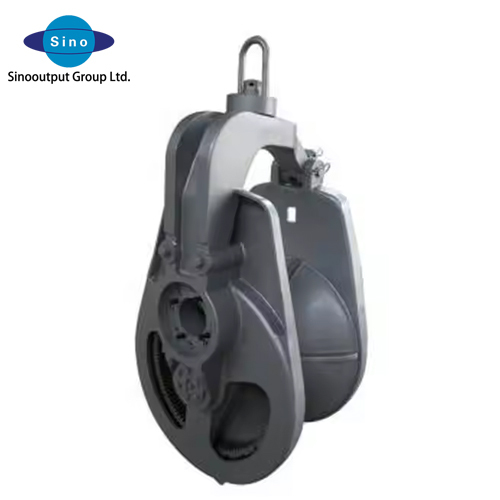

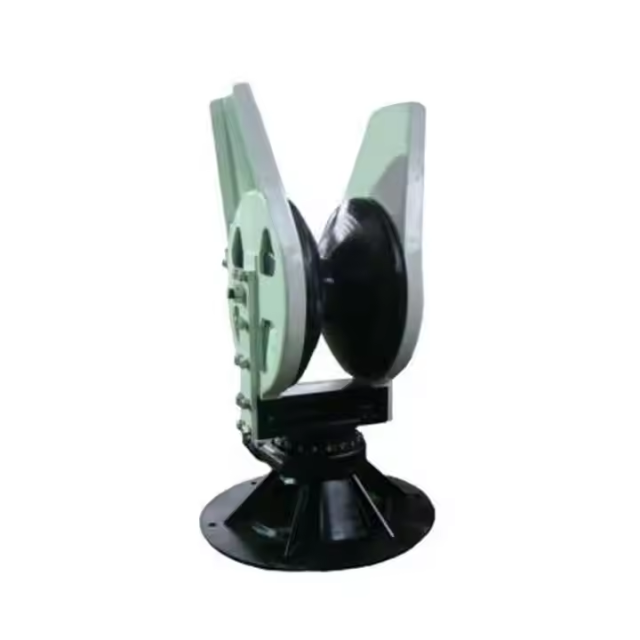

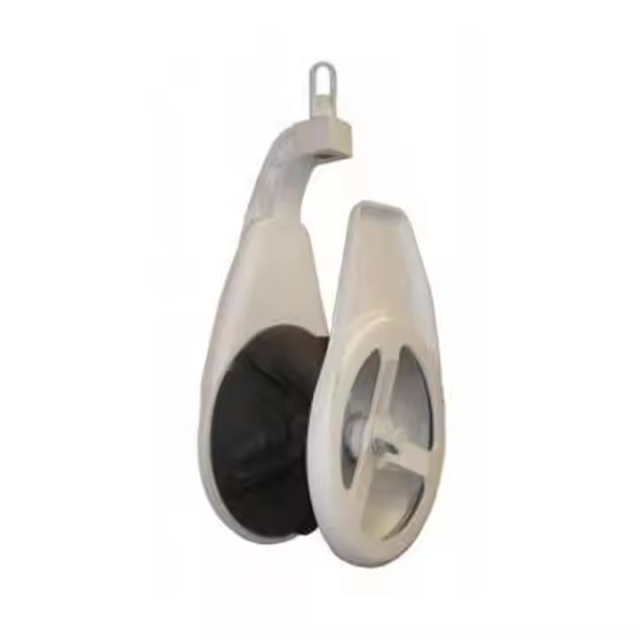

Fishing Boat Accessoires Aluminum/stainless Steel Fishing Machine Power Block

Name: Fishing Boat Accessoires Aluminum/stainless Steel Fishing Machine Power Block
Brand: sinooutput-Marine spare parts supplier and ship building consultant
Availability: InStock
Rating: 5 (1 reviews)

The SINO-FM Series Power Blocks are specially designed to meet the demands of modern fishing boats, ensuring efficiency in hoisting and managing nets. These power blocks are made with high-quality aluminum alloy or stainless steel, providing excellent corrosion resistance and high strength while maintaining a lightweight design. With a hydraulic drive system and stepless speed adjustment, the SINO-FM Power Block is perfect for handling various fishing operations.

Get A Quote

Desciption

Product Description

Power Block

SINO-FM series power blocks have been perfected day by day through continuous improvement and perfection based on years of operation practice and experience accumulation. The main components are selected from high-quality aluminum alloy materials, which are light in weight, high in strength and corrosion resistant. With hydraulic drive, the speed can be adjusted steplessly, which is a modern. It is an ideal choice for fishing boats to hoist and manage nets.

SINO-FM series power blocks have various specifications such as 20” 24” 29” 33” 36” 38” 42”; according to the operation requirements, the pulley hub can choose rubber vulcanized aluminum alloy hub, aluminum alloy hub, or aluminum alloy hub with ribs hubs. Alternatively, 24"33" power blocks are available with anti-skid
The selection of the pressure wheel structure improves the working efficiency.

Product Overview

Model	Material	Dimensions(mm)				Hub diameter(mm)	Flow(GPM)	Pull(kg)	Net weight (KG)
Model	Material	A	B	C	D	Hub diameter(mm)	Flow(GPM)	Pull(kg)	Net weight (KG)
SINO-FM-20	Aluminum alloy	542	260	508	1154	508	12	882	125
SINO-FM-24AO		655	306	610	1354	610	18	1860	185
SINO-FM-29		778	399	736	1300	736	24	2146	225
SINO-FM-29A		905	398	736	1470	736	24	2146	225
SINO-FM-33AG		764	440	838	1590	838	42	2986	570
SINO-FM-36F		1360	610	914.4	2054	914.4	45	4306	720
SINO-FM-36		1000	480	850	1626	850	48	2986	570
SINO-FM-38A		1080	500	1320	1790	1320	60	4000	665
SINO-FM-42A		1120	552	1067	1970	1067	90	6000	980
SINO-FM-47A		1200	660	1200	2200	1200	110	8000	1200
SINO-FM-56A	Ship plate/stainless steel	1256	696	1432	2340	1432	160	9700	2600
SINO-FM-56A1		1256	696	1432	2340	1432	170	12000	2650
SINO-FM-78A		1780	970	1995	3260	1995	180	13000	4500
