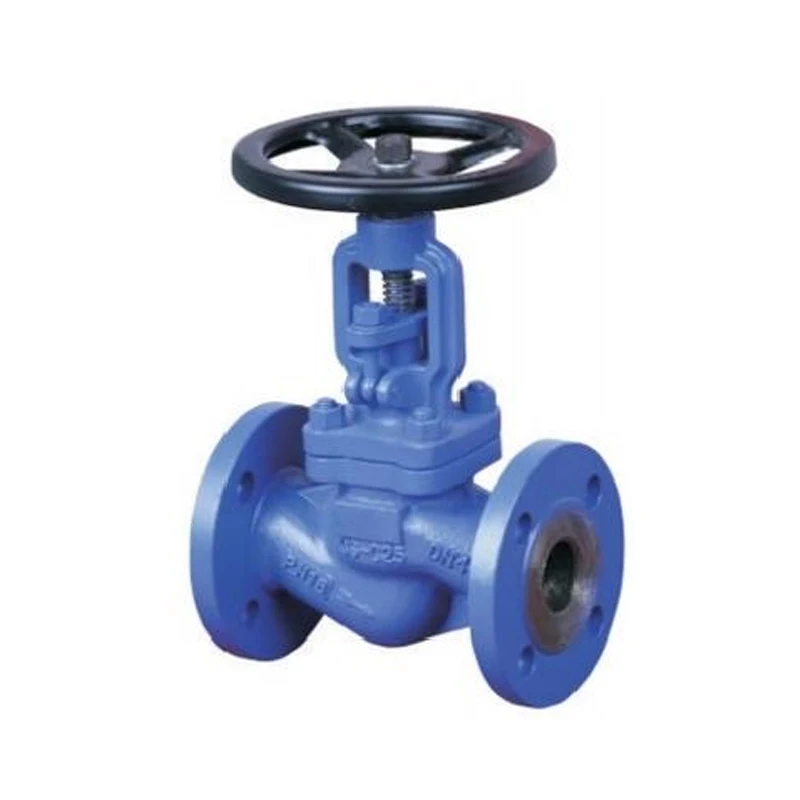

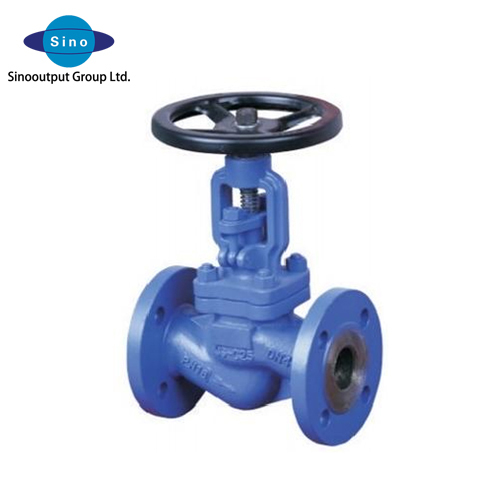

Compact Pattern Globe Valve Connection Flange DIN 2543-2546,Steam/Oil/Gas Shutoff Valve with Fire-Safe Design
Our German Standard Globe Valves are designed for precise flow control in petroleum, chemical, pharmaceutical, fertilizer, electric power, and various other industrial applications. Built to meet German engineering standards, these valves ensure exceptional durability and high-performance operation, even in extreme pressure and temperature conditions. With superior sealing capabilities, they provide reliable flow regulation and contribute to system efficiency. These valves are ideal for energy production, chemical processing, pharmaceutical manufacturing, and more. Contact us today to learn how our German standard globe valves can meet your industry’s needs!
Petroleum, chemical, pharmaceutical, fertilizer,electric power and other industries
Main advantages of the product
1. The valve disc adopts a conical design, and the sealing surface and the medium are streamlined, which has better sealing performance and longer service life. 2. The ergonomically designed handwheel has a longer service life, easy and convenient operation, and is safer and more reliable. 3. The valve stem is tempered and the surface is nitrided, which has good anti-corrosion and anti-friction properties.

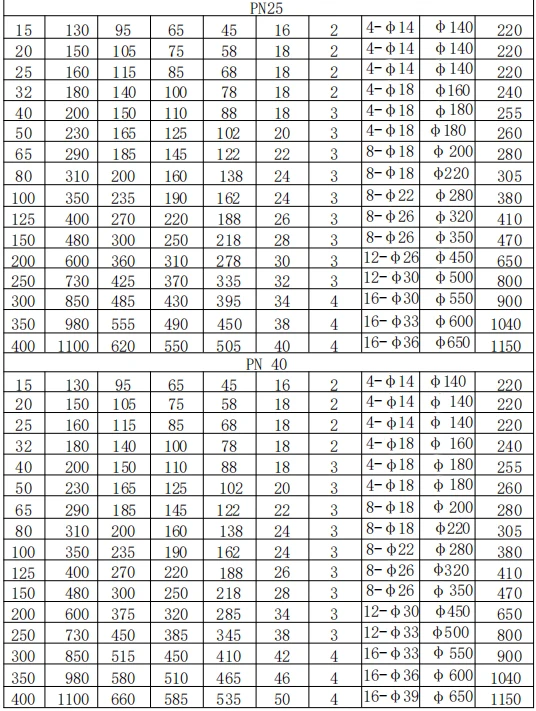

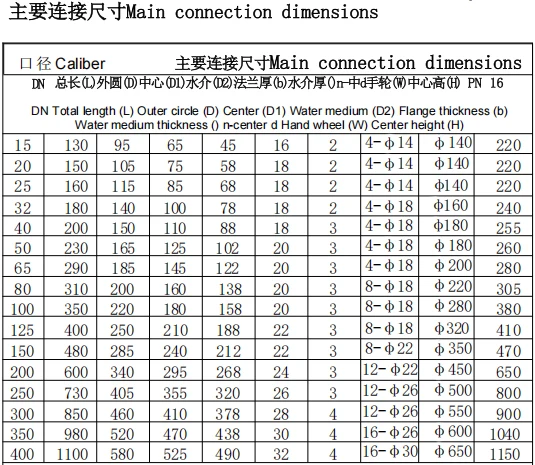

Specification
Technical Specifications

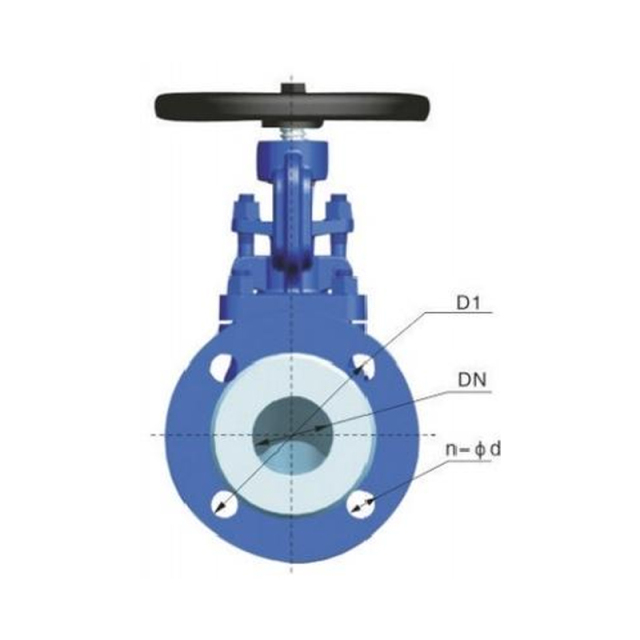

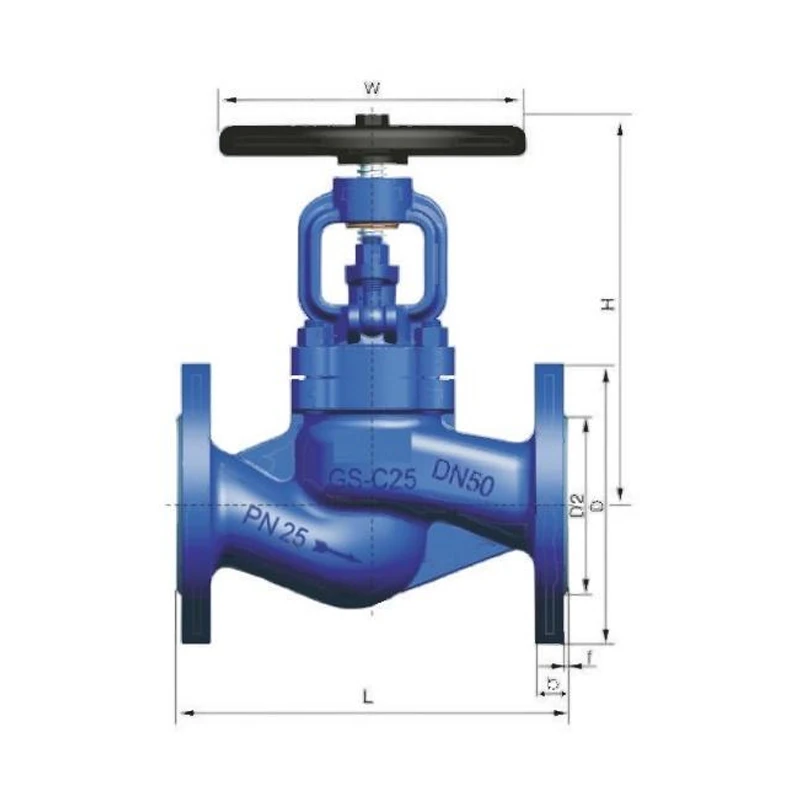

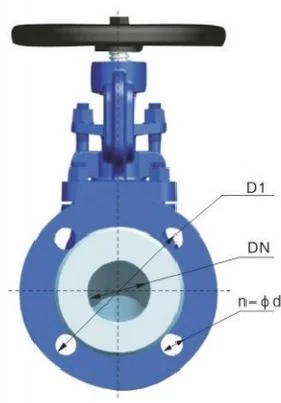

Design standard: DIN 3356 Structural length: DIN 3202 Connection flange: DIN 2543-2546 Test and inspection: DIN 3230

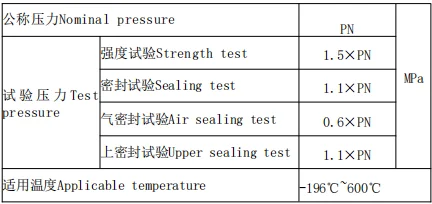

Performance Specifications

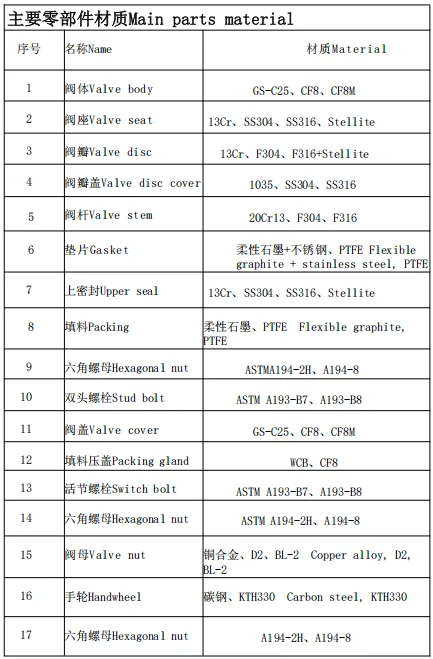

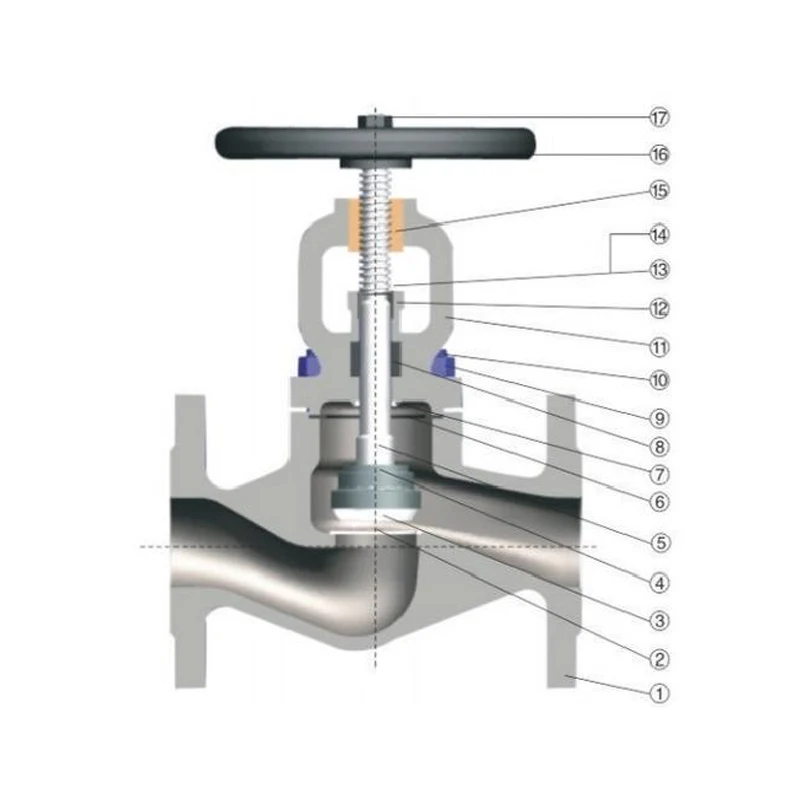

Main parts material
