General introduction:

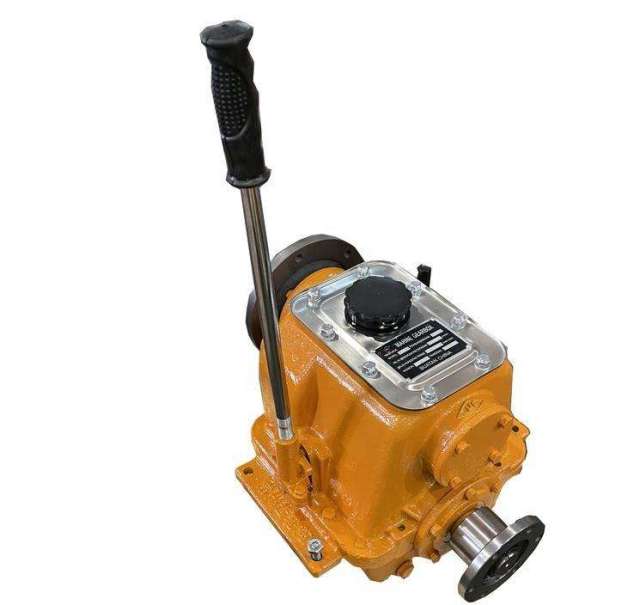

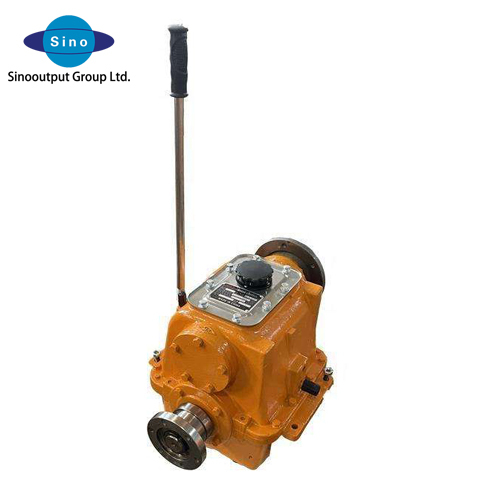

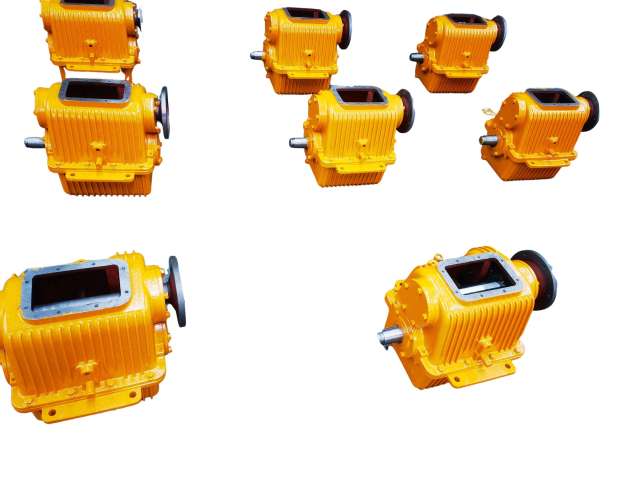

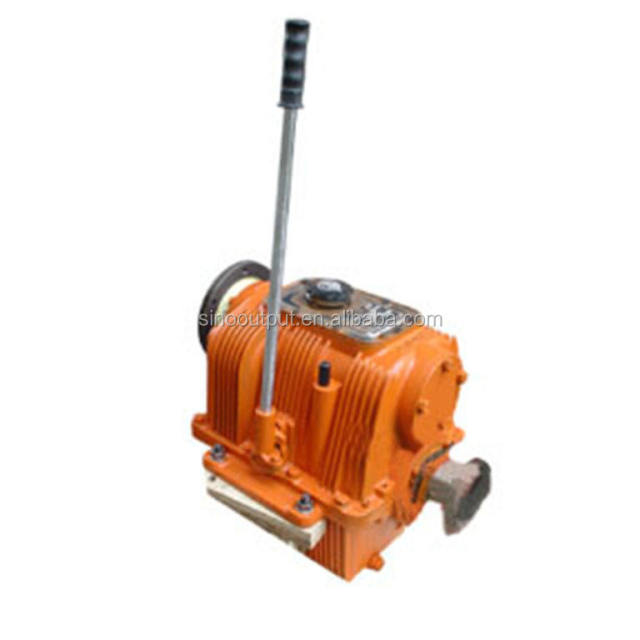

Advance marine gearbox 06 is suitable for small fishing, transport and rescue boats. It possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust.
It is mechanically controlled, featuring in small in volume and light in weight.
Parameters:
| Input speed | 1000-2100r/min | ||
| Reduction ratio | 2.52,3.05,3.50 | Trans. capacity | 0.004kw/r/min |
| Control way | Manually | ||
| Rated thrust | 1.8KN | ||
| Center distance | 124mm | ||
| L×W×H | 350×316×482mm | ||
| Net weight | 58kg | ||
| Flywheel | 195C | ||
| Bell housing | 195C | ||
